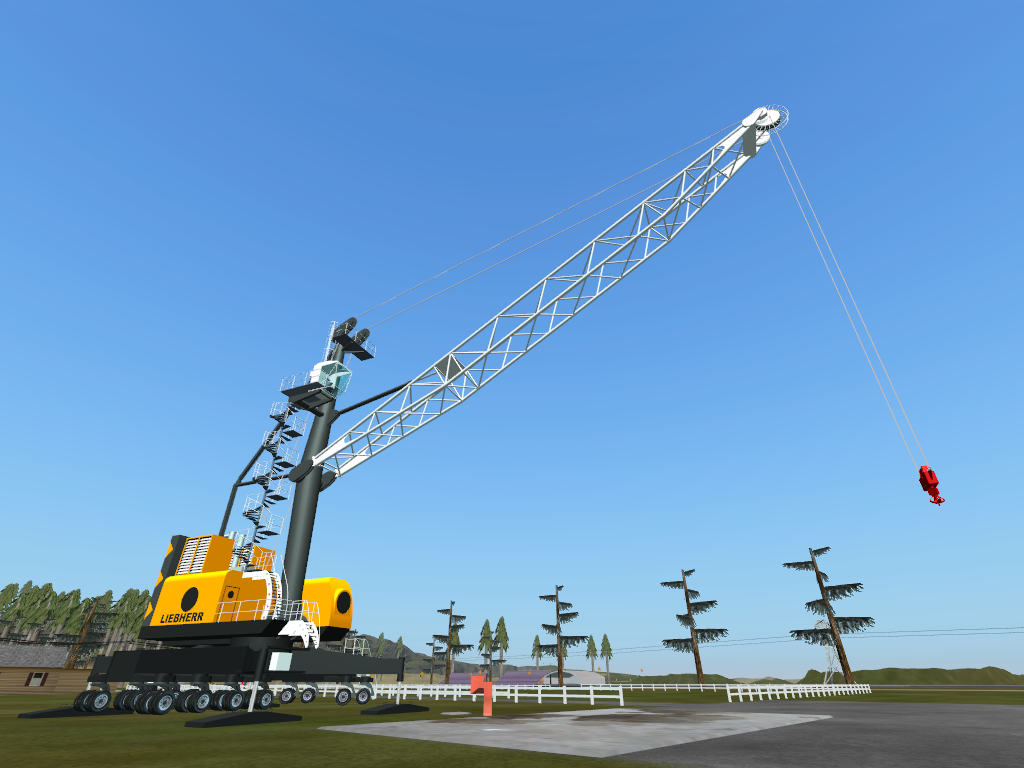

LHM 280
The LHM 280 is absolutely essential in ports for the rapid handling of general and bulk cargoes. With a maximum load-bearing capacity of up to 84 tonnes, it can also handle containers and heavy loads. With an outreach of up to 40 metres, the LHM 280 is primarily suitable for ships up to the Feedermax/Handysize category.
| Lifting capacity (max.) | 84 t |
|---|---|
| Jib length | 40 m |
| Total weight | 241 t |
| Hoisting/lowering max. | 90 m/min |
Technical data
| Lifting capacity (max.) | 84 t |
|---|---|
| Max. load bulk | 52 t |
| Radius min. | 10.00 m |
| Jib length | 40 m |
| Total weight | 241 t |
| Container rows max. | 12 |
| Max. ship width bulk | 43 m |
| Max. ship width scrap | 34 m |
| Material handling capacity bulk | 1,000 t/h |
| Engine power | 400 kW |
| Hoisting/lowering max. | 90 m/min |
| Slewing max. | 1.60 rpm |
| Luffing max. | 75 m/min |
| Travel speed max. | 5.40 km/h |
| Mobility | rubber tyred |
| Fields of application | Container handling / Scrap handling / Bulk handling / Heavy lift / General cargo operation |
| Lifting height max. | 48 m |
