LR 11000

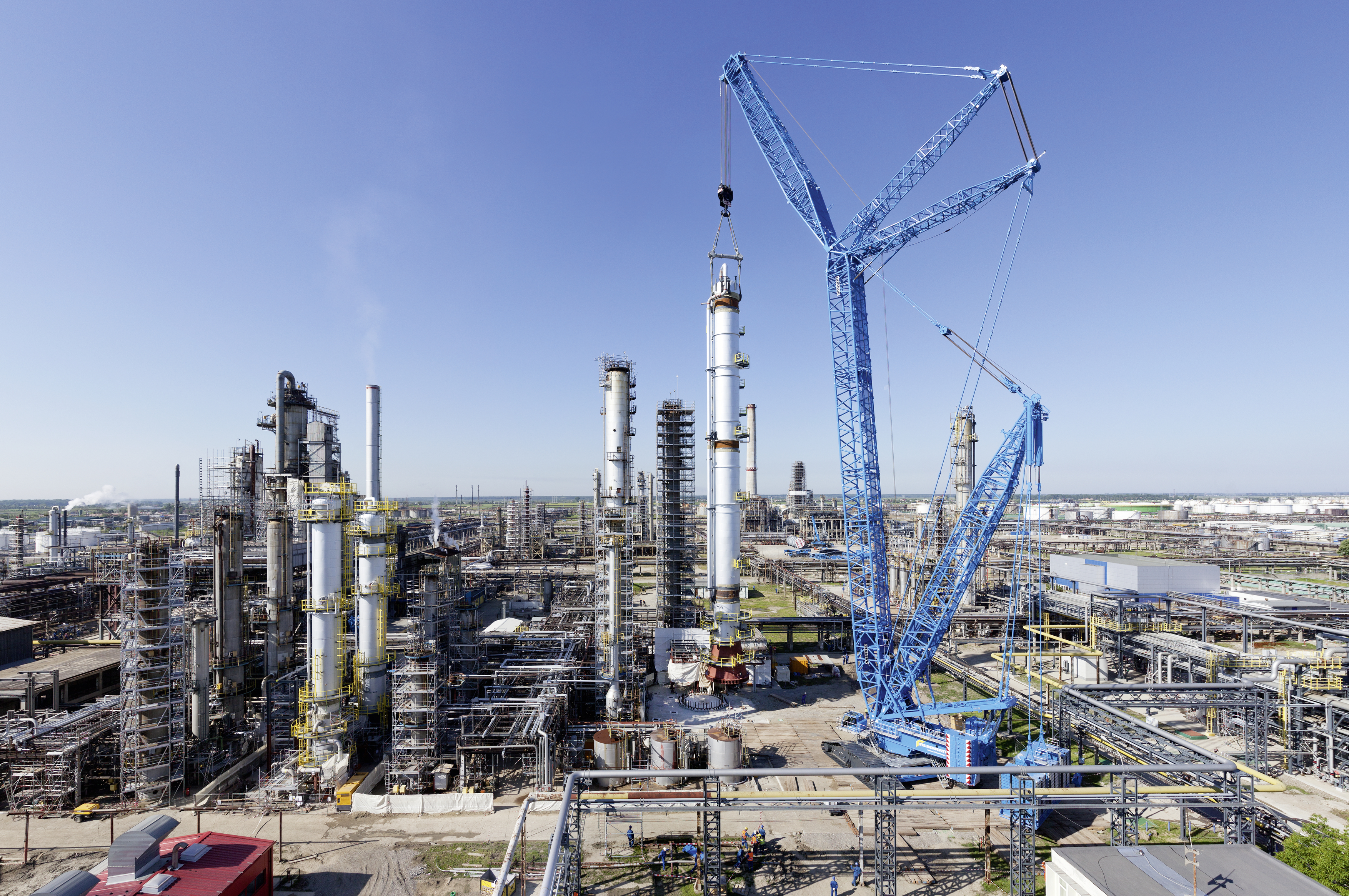

The LR 11000 covers a wide range of use with ist large number of boom versions including the PowerBoom parallel boom system. The LR 11000 has been designed so that it can be used in constricted areas, for example in refineries. It has also been designed to ensure that it can be transported at low cost.
| Max. load capacity | 1,000 t |
|---|---|
| Max. hoist height | 224 m |
| Max. radius | 180 m |
Technical data
| Max. load capacity | 1,000 t |
|---|---|
| at radius | 11.00 m |
| Main boom, lightweight/heavyweight from | 18 m |
| Main boom, lightweight/heavyweight up to | 156 m |
| Max. load torque | 15,171 tm |
| Lattice jib from | 18.0 m |
| Lattice jib up to | 114.0 m |
| Derrick boom from | 30 m |
| Derrick boom up to | 36 m |
| Central ballast | 90 t |
| Counterweight at superstructure | 250 t |
| Derrick ballast | 450 t |
| Engine power | 500 kW |
| Driving speed | 1.36 km/h |
| Total ballast | 790.00 t |
