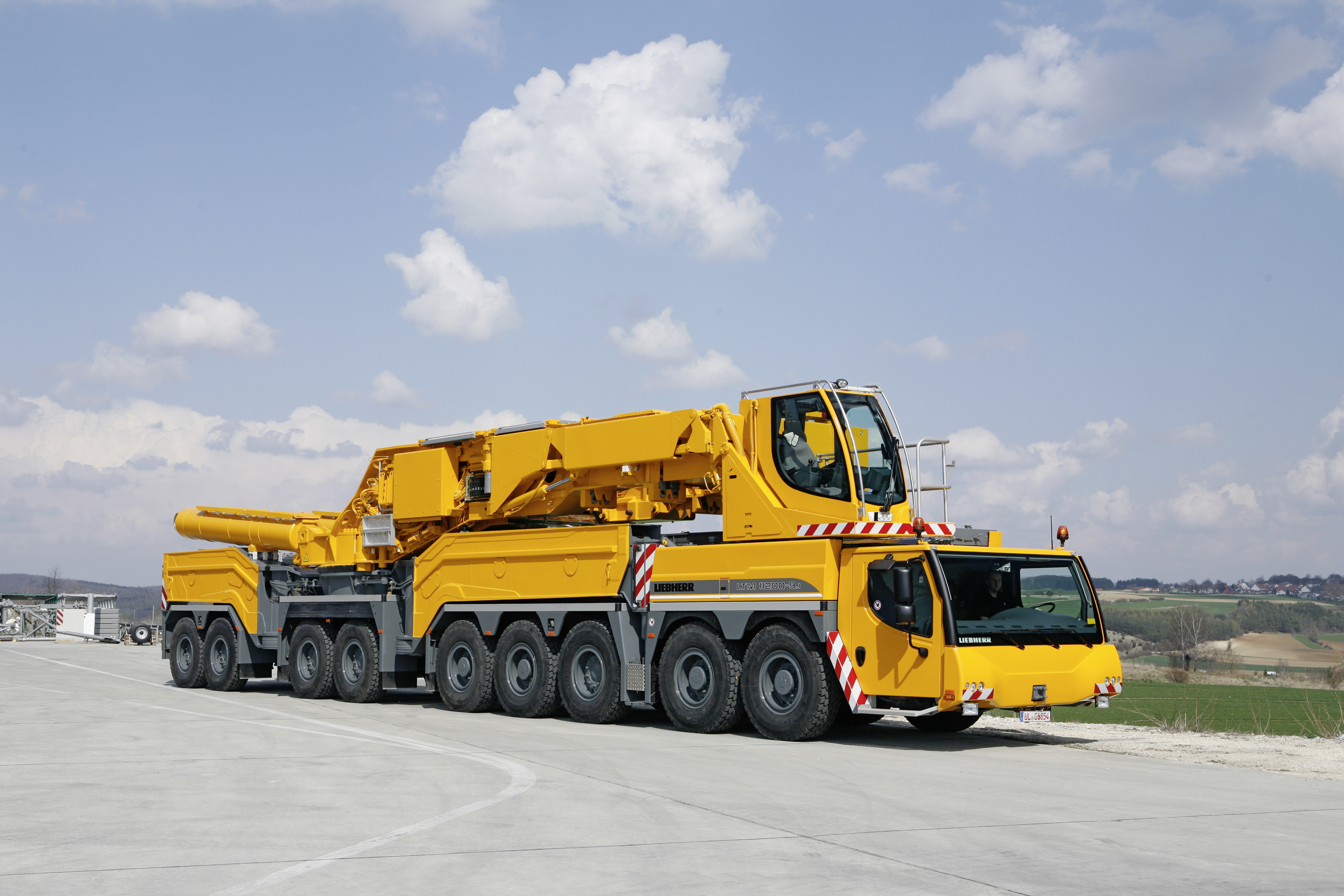

LTM 11200-9.1
The LTM 11200-9.1 delivers maximum load capacity and one of the longest telescopic booms in the world. Various lattice extensions are also available. The Y telescopic boom guying delivers significant increases in load capacity. The 9-axle chassis includes active, speed-dependent rear-axle steering developed by Liebherr.
| Max. load capacity | 1,200 t |
|---|---|
| Telescopic boom | 100 m |
| Max. hoist height | 188 m |
| Max. radius | 136 m |
| Number of axles | 9 |
Technical data
| Max. load capacity | 1,200 t |
|---|---|
| at radius | 2.50 m |
| Telescopic boom from | 18.30 m |
| Telescopic boom up to | 100.00 m |
| Lattice jib from | 6.5 m |
| Lattice jib up to | 126.0 m |
| Drive engine/make | Liebherr |
| Drive engine | 8-Zylinder-Diesel |
| Drive engine/power | 500 kW |
| Number of axles | 9 |
| Crane engine/make | Liebherr |
| Crane engine | 6-Zylinder-Diesel |
| Crane engine/power | 270 kW |
| Drive/Steering standard | 18 x 8 x 18 |
| Driving speed | 75.00 km/h |
| Total ballast | 202.00 t |
